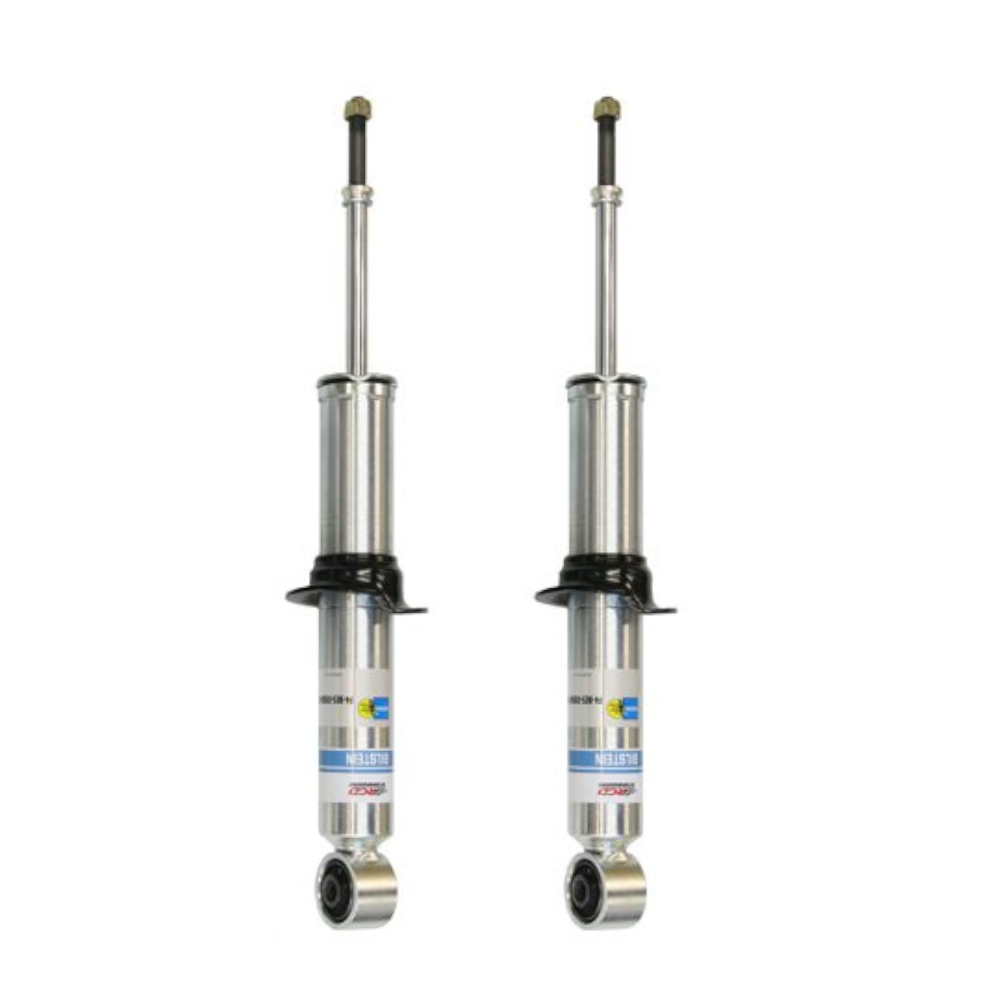

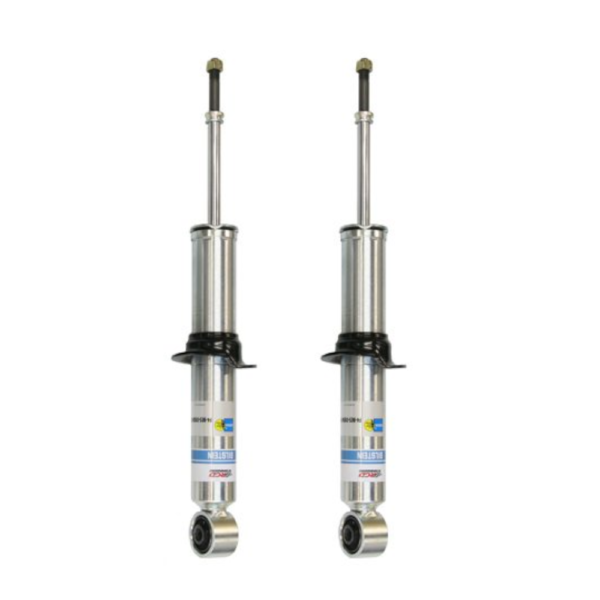

Bilstein/RCD 5100 Front 0-2.5″ Lift Adjustable Shocks 1995-2004 Tacoma
Sale!
Description
Front Bilstein Height adjustable 5100 shocks 95, 96, 97, 98, 99, 00, 01, 02, 03, 04 Toyota Tacoma
Part: D558
Need a full kit?
Bilstein Part: 2 x F4-BE5-D558-T0
Extended length: 18.64″
Collapsed length: 13.39″
- 5100 series with silver / zinc plate finish
- Can be set at stock height, 1.25″ (for leveling) or 2.5″of lift
- Complete front and rear lift packages available- Search site or ask for details
- If used with front lift coils we recommend using the lowest setting to avoid damage to front suspension/drive line components.
- Sold in sets of 2. You will receive 2 shocks with your purchase
If used with front lift coils we recommend using the lowest setting to avoid damage to front suspension/drive line components.
NOTE: Upper bushings and washers are not included from Bilstein in this part number, order separately if needed.
-
Sale!
KYB Front Shock/Strut Upper Bushings and Washers kit for 1995-2004 Toyota Tacoma 2WD/4WD
(3 reviews)Original price was: $34.99.$19.99Current price is: $19.99.
Fits Toyota Tacoma 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Toyota 4Runner 1996, 1997, 1998, 1999, 2000, 2001, 2002
Does not fit 5 Lug Tacoma
Includes 2 Shocks
Questions and answers of the customers
-
Will these fit on my 2004 SR5 4WD 4runner?
-
Q Will these fit on my 2004 SR5 4WD 4runner?There are no answers for this question yet. Answer now
I ordered this pair of struts back in December, 2020, and finally got around to assembling them. I noticed one of the spacers was missing, the one that is located where the threaded part of the stem transitions to the smooth part of the shaft. Without it, the bottom washer and stem cushion are very loose and move around. The other strut assembled perfectly. Can you tell me how to get a replacement, or how to go about ordering one (part number, name of part)? Need one ASAP, as I've already begun to put the vehicle together. I've made sure to vigorously look and made sure it never came in the box! Thanks for your help.
-
Q I ordered this pair of struts back in December, 2020, and finally got around to assembling them. ...... Read moreThere are no answers for this question yet. Answer now
Part numbers on the missing hardware?
-
A you can reuse your old bushings and washers if they are in a good shape or order new OEM ones from Toyota
Can you change the ride heights after installed?
-
A ride height can be changed only by disassembling the strut
Have an 03 4runner with steel bumper and winch. What kind of lift should I expect at the highest setting. Throughout the post, a rep mentions mounting on the lowest setting. What will happen if I use the higher one as I will need to??
-
Q Have an 03 4runner with steel bumper and winch. What kind of lift should I expect at the highest ...... Read more answer nowA you'll get a very small lift using stock coils with bumper and winch. We'd recommend reinforced lift coils for additional weight
Why is there not an application for Ford SUV'S
-
A Please send us complete info about your truck as follows: Year Model Sub-model (1500 / 1500HD / etc.) Drivetrain (4WD / 2WD) Engine (displacement, fuel: gas/diesel) Cab (regular, crew, extended) Lift height (front and rear lift amount if applicable) Lift type (spacers, spring coils or specify if anything else was applied for the lift) and we'll try our best to find the proper shocks for your vehicle.
Can I use these struts even if my truck already has a 6in lift kit?
-
A These shocks work with a stock spring and can lift your truck by themselves within 0-2.5 ″ without any lifting kit
Will they fit on A 1999 Toyota Tacoma 5 lug?
-
A These shocks fits for Toyota Tacoma 1995-2004 Does not fit 5 Lug Tacoma!
When these shocks are used with stock springs and are set to max lift of 2.5 in. Is the shock maxed out? or will there be plenty of up and down travel
-
Q When these shocks are used with stock springs and are set to max lift of 2.5 in. Is the shock max...... Read more answer nowA Will have it's uptravel. Downtravel will be limited by control armA These shocks are longer than stock - will not be maxed out. Travel will be limited by control arms
Do these shocks travel farther the stock shocks?
-
Q Do these shocks travel farther the stock shocks?There are no answers for this question yet. Answer now
Will these struts fit my v6 01’ tacoma double cab 2wd?
-
A Will fit if your Tacoma is 6-lug
Will these shocks fit a fts2300k fabtech?
-
A These shocks are: Extended Length (IN): 18.66 Inch Compressed Length (IN): 13.86 Inch Upper Mounting Style: Loop Lower Mounting Style: Pin Please compare to your old shocks dimensions and mountings
I have a 2002 4WD SR5 4runner. Im and planning on using these with OME 881 springs that give a 2.5in lift. What setting should the shocks be set to to keep the lift under 3in
-
Q I have a 2002 4WD SR5 4runner. Im and planning on using these with OME 881 springs that give a 2....... Read more answer nowA Lowest clip setting (which is for stock height)
So this version is the old version with 3 settings but offers more total lift (2.5")? As opposed to the version with 4 settings sold in the set here, which maxes out at 2" lift? https://suspensionlifts.com/shop/toyota-tacoma/1995-2004/shocks-95-04/bilstein-5100-0-2-inch-front-1-1-5-inch-rear-lift-shocks-for-1995-2004-toyota-tacoma-4wd/
-
Q So this version is the old version with 3 settings but offers more total lift (2.5")? As opposed ...... Read more answer nowA That is correct, but that is not an "old" version, it is just manufactured for "RCD" Brand with different settings.
Is this the pair or just 1 an would this work with my leveling lit?
-
A Priced per pair of shocks. It can lift the front up to 2.5'' by itself using height adjustment so the leveling kit is to be removed not to exceed 3'' of lift and not to damage the suspension
2001 4runner 4wd. From what I am seeing to achieve a total of 3” of lift I’ll want these shocks and the Toytec/Eibach springs with the shocks at the 2nd setting correct? Would there be any benefit to going with 00-06 Tundra components?
-
Q 2001 4runner 4wd. From what I am seeing to achieve a total of 3” of lift I’ll want these shocks a...... Read more answer nowA 2nd setting, you are right. Haven't tested with 1st gen Tundra coils
Would any damage occur to the shocks if I use these with factory 2001 4Runner coils? Or is it necessary to use an aftermarket coil?
-
Q Would any damage occur to the shocks if I use these with factory 2001 4Runner coils? Or is it nec...... Read more answer nowA These shocks were designed for stock coil springs. If using lift coil springs please use the lowest notch adjustment on shocks in order not to damage the suspension
I see review said the shock boots aren't provided. Are they needed? or do they come with them?
-
Q I see review said the shock boots aren't provided. Are they needed? or do they come with them? answer nowA You don't need the boots because they are only there for looks but don't actually serve any purpose because the shocks are sealed. I can't say if the shock will come with a boot or not and there isn't any special pricing for the shock with or without the boots.
Are these front shocks all I need to get 2.5" of lift in the front?
-
A You are right, these shocks will allow to have up to 2,5'' front lift by adjusting the shocks height, using stock coil springs.
If I use these shocks with toytec coils on a 2004 V6 Tacoma, what setting on the shock should I use for a 3" lift on the front?
-
Q If I use these shocks with toytec coils on a 2004 V6 Tacoma, what setting on the shock should I u...... Read more answer nowA With 112620 coils : -The Eibach 112620 is a 620lb spring rate. It was designed to work with the Bilstein 5100’ s. With the 112620 you have two different settings you can use. The first one will give you 1 ½ inches of lift and the 2nd setting will give you a 3” lift. https://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/front-lifts/toytec-eibach-front-coil-lift-springs/ With 521600 coils https://suspensionlifts.com/shop/toyota-tacoma/2005-2015/front-lifts-and-coilovers/toytec-2-5-3-inch-lift-front-coil-springs/ If used with Bilstein 5100 shock, bottom clip setting is recommended.
will they level a 2001 Toyota Tacoma with a 2.5 inch suspension lift in the front?
-
A These shocks are height adjustable - yes, they allow to level the truck with the stock rear height by adjusting the front height
Can these work at the 1.5" lift setting with factory springs and a spacer? I want to lift my truck a little more just in the front without changing the lift kit.
-
Q Can these work at the 1.5" lift setting with factory springs and a spacer? I want to lift my truc...... Read more answer nowA Yes, it may work. Please be sure not to exceed 3'' of total lift in the front. Also the diff drop kit is recommended for 4WD trucks if lifted more then 1,5'' https://suspensionlifts.com/shop/toyota-4runner/1996-2002/front-differential-drop-kit-1995-2004-toyota-tacoma-02-4runner-06-tundra-sequoia-4x4/
Will this work on a 1997 2WD V6?
-
A As long as the Tacoma 6 lug they will fit
Does this work for a 1999 4Runner 2wd?
-
A Yes
I have a 96 Tacoma and if purchased I would want to do new coil springs along with rear shocks what springs would I do that adapt to these shocks..?
-
Q I have a 96 Tacoma and if purchased I would want to do new coil springs along with rear shocks wh...... Read more answer nowA Please consider this springs: https://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/front-lifts/toytec-eibach-front-coil-lift-springs/ The shocks on the lowest setting are needed to be used with these springs, otherwise you will get too much lift.
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
6 reviews for Bilstein/RCD 5100 Front 0-2.5″ Lift Adjustable Shocks 1995-2004 Tacoma
