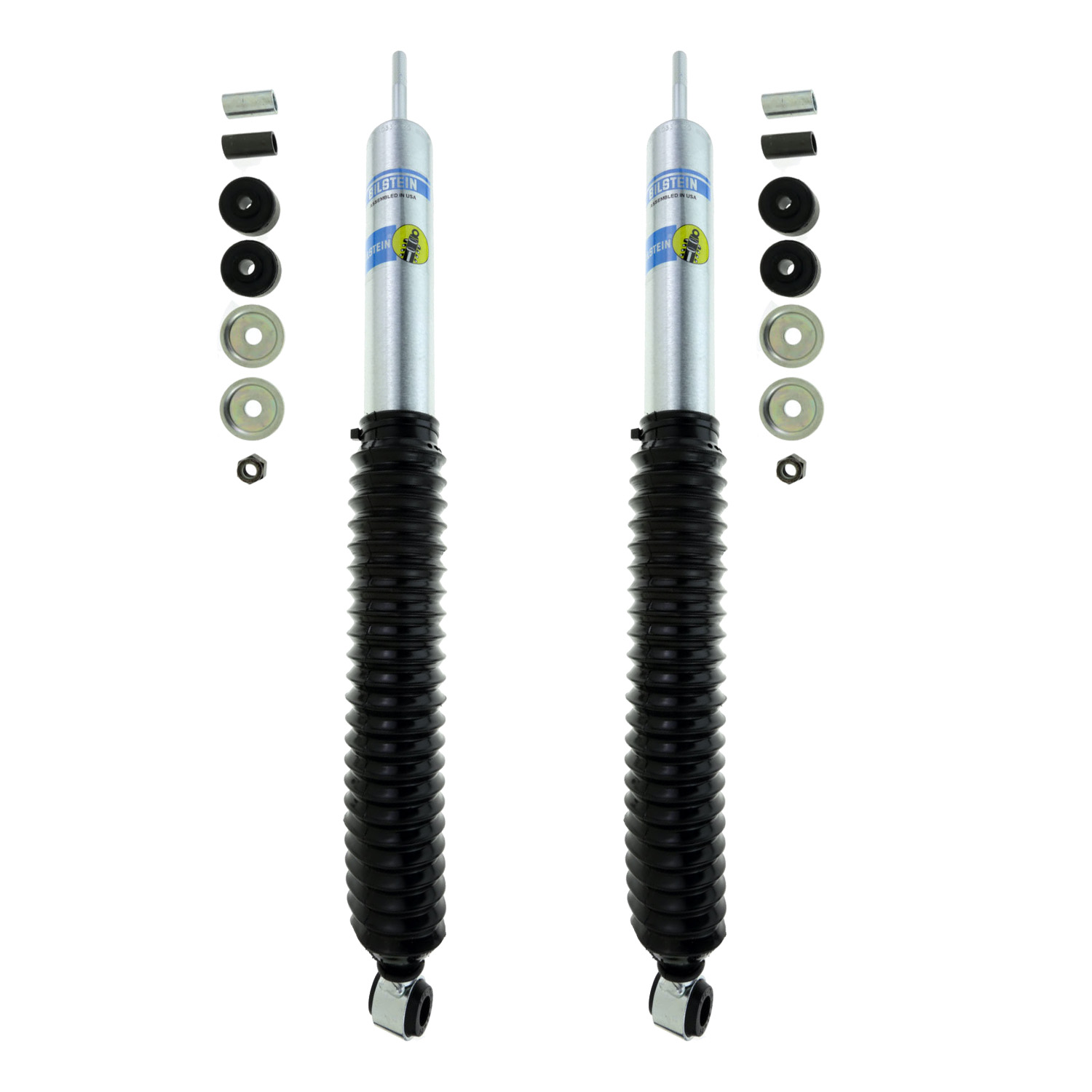

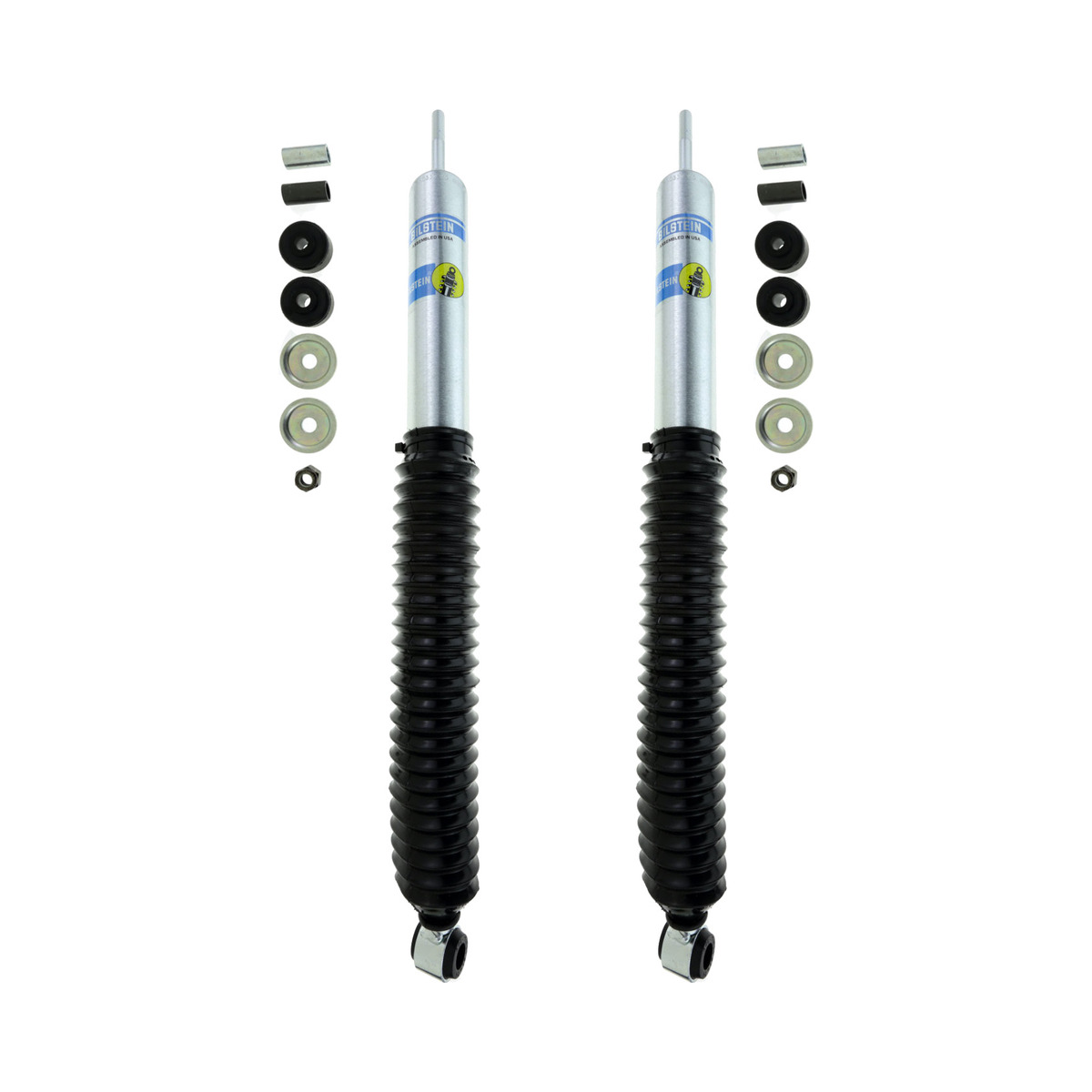

Bilstein 5125 2-3.5″ Rear Lift Shocks for 2005-2023 Toyota Tacoma
Description
Bilstein 5125 2-3.5″ Rear Lift Shocks for 2005-2023 Toyota Tacoma
Bilstein 5125 2-3.5″ Rear Lift Shocks for 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023, 2023 Toyota Tacoma
Part: 2×33-230337
Product Description
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Collapsed Length (IN): 15.01
Extended Length (IN): 24.38
Collapsed Length (MM): 381.3
Extended Length (MM): 619.3
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Minor bushing modification may be required. (2022 update: we now include extra energy suspension bushings 9.8108G)
Questions and answers of the customers
-
The rear bushing for the shocks will not go into the bottom shock housing, anything I’m missing? I have the sleeve inserted into the bushings but they will not fit
- QThe rear bushing for the shocks will not go into the bottom shock housing, anything I’m missing? ...... Read more answer nowA please see the manualhttps://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y217A00.pdfA I had to cut a bit off to fit my 2013. Get a good pair of locking pliers too. You’ll need it to hold the neck to thread the locknut down.Are these good to pair with the icon 1.5 AAL with factory overload spring?
- A I found they worked extremely well with my 2" rear AAL suspension. It put the ride height right in the middle of the shocks travel range. I expected a harsher ride with the AAL and Bilstien shocks but found the ride to be very nice and the truck felt more solid on the road. I have also had it off-road in the woods and mountains of Vermont with no issues. Plenty of travel and excellent feeling of control.will these fit a 2008 Toyota Tacoma Pre-runner 6 lug with a 4" lift?
- A will work for 3.5'' rear liftif you have lifted the rear 4'' and even higher than 4'' from stock we can offerhttps://www.suspensionlifts.com/shop/toyota-tacoma/2005-2015/rear-4-5-5-inch-lift-bilstein-5100-shocks-for-2005-toyota-tacoma/I have a 2018 Toyota tacoma double cab 4x4 sport. It has a 2 inch moto fab block level kit on rear. It has factory leaf springs. Can I run the 5100 on the rear with the two inch block and factory leafs ot should I go with the 5125 bilstein. Thanks, for your input.
- QI have a 2018 Toyota tacoma double cab 4x4 sport. It has a 2 inch moto fab block level kit on rea...... Read more answer nowA 5125s will be good (especially if you plan to go higher in future)will these fit my 07 tacoma prerunner 6lug?
- A will fit if you have at least 2,5'' rear lift.would these 5125 work with a Deaver U402 Stage 1 leaf kit?
- A It will fit 2-3.5″ REAR LIFT FOR 2005-2020 TOYOTA TACOMACan you run the 5125 on rear for 2" only, on a 2017 tacoma??
- A These shocks can work with a lift in the range of 2-3.5 ″, fits for 2005-2020 TOYOTA TACOMAThe price per pair or individual?
- A Price is for 2 shocksWill these bilstein 5125 fit on a 2019 Tacoma rear with a 2” lift block.
- QWill these bilstein 5125 fit on a 2019 Tacoma rear with a 2” lift block.There are no answers for this question yet. Answer nowCan you run the 5125 on rear with the 5100 on the front? Would you have to add a 1/4" wedge for the diff as well?
- QCan you run the 5125 on rear with the 5100 on the front? Would you have to add a 1/4" wedge for t...... Read more answer nowA Yes you can but you'll need at least 2-2.5'' rear lift Diff drop kit is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life.Would these bilstein 5125 be good to run in the rear with the OME 2" rear leaf springs EL095R?on a 2015 Toyota Tacoma DRD offroad.
- QWould these bilstein 5125 be good to run in the rear with the OME 2" rear leaf springs EL095R?on ...... Read more answer nowA Yes, they will fit
