Bilstein B8 Assembled 6112 Coilovers 0-2″ Front 0-1.5″ Rear 5160 Lift Kit for 2016-2023 Toyota Tacoma

Description
Bilstein B8 Assembled 6112 Coilovers 0-2″ Front 0-1.5″ Rear 5160 Lift Kit for 2016-2023 Toyota Tacoma

Bilstein B8 6112 Assembled Coilovers 0–2″ Front + 0–1.5″ 5160 Rear Reservoir Shocks – 2016–2023 Toyota Tacoma

Part: 6112Tac16R

Level your 3rd-gen Tacoma with a bolt-on package tuned for daily comfort and weekend trails. The front Bilstein 6112 coilovers arrive fully assembled with new top mounts. Out back, Bilstein 5160 remote-reservoir shocks add heat capacity and wheel travel for consistent control on rough roads.

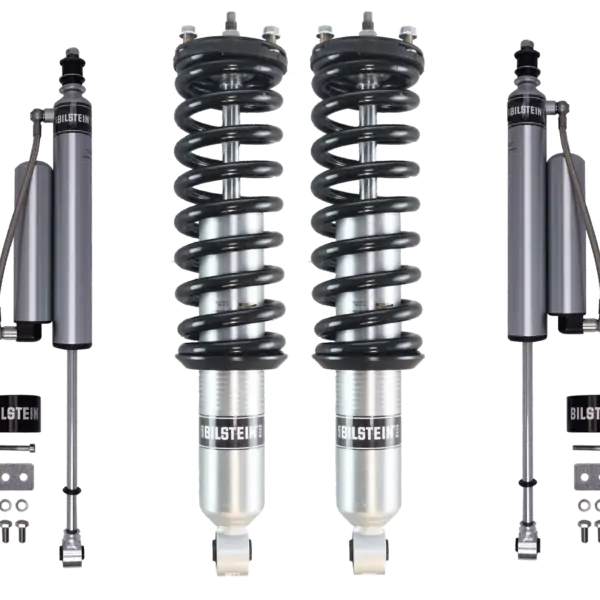

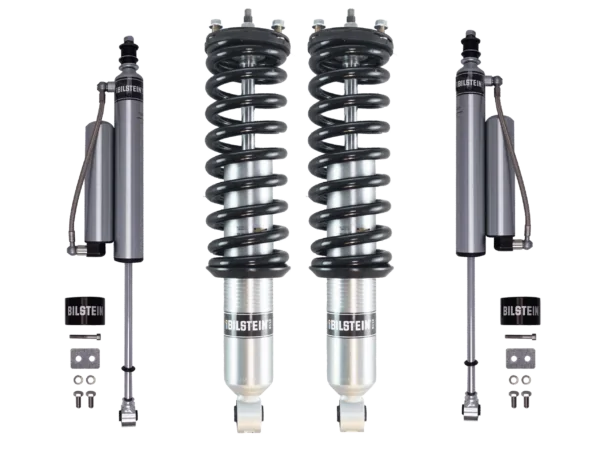

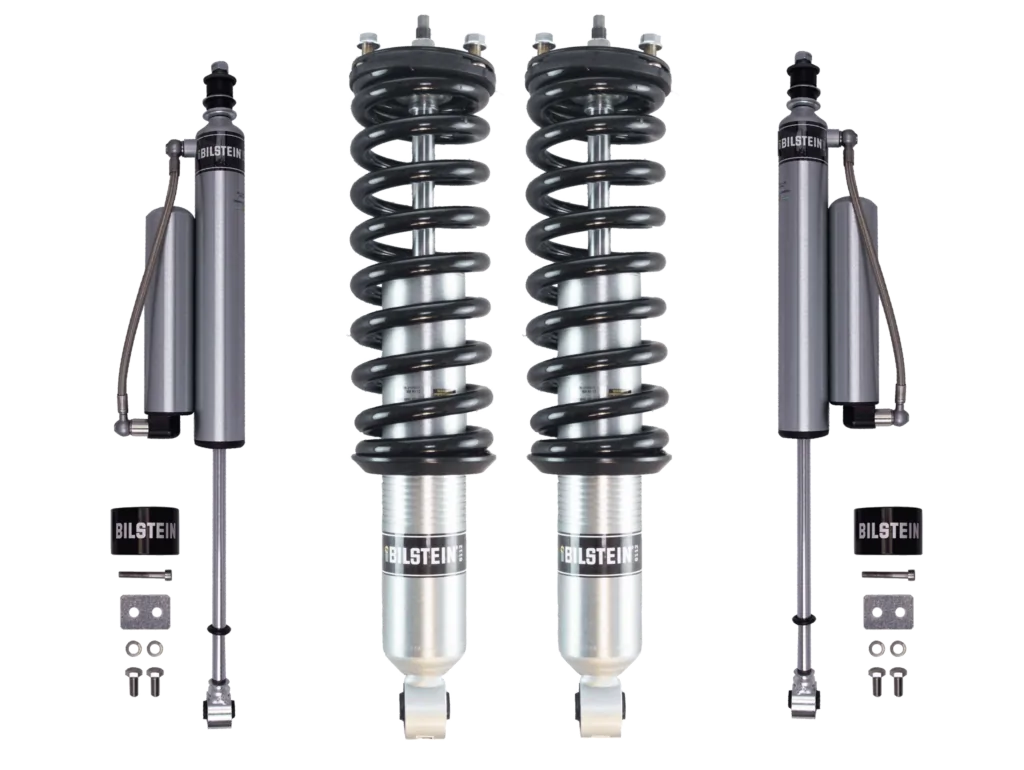

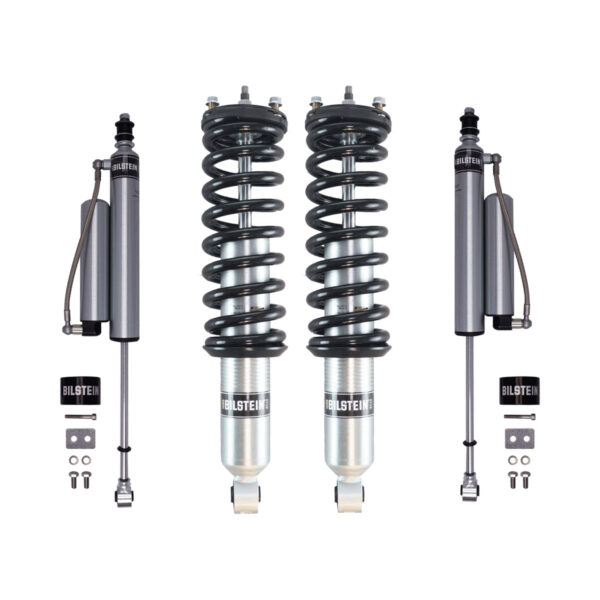

What’s Included

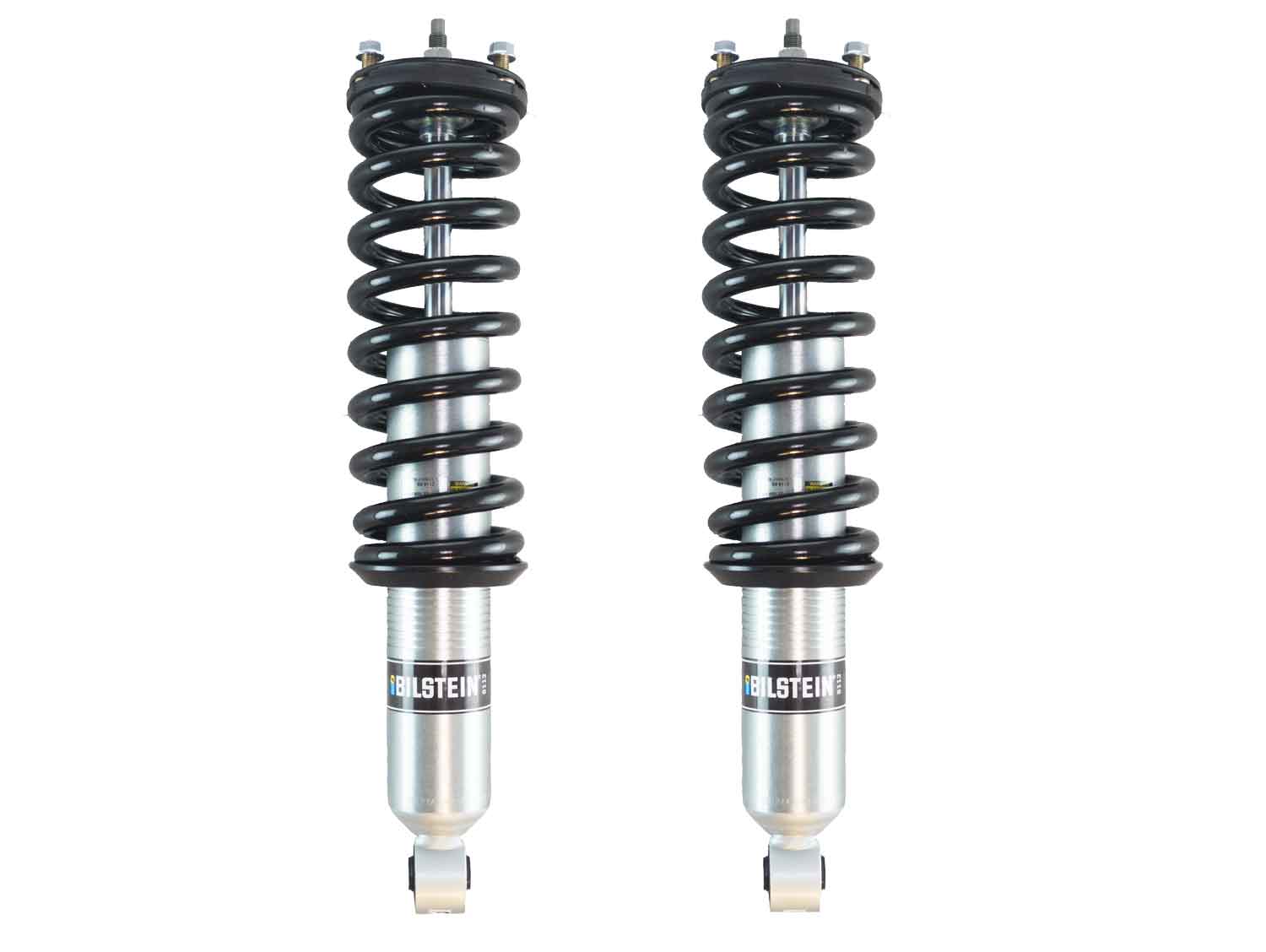

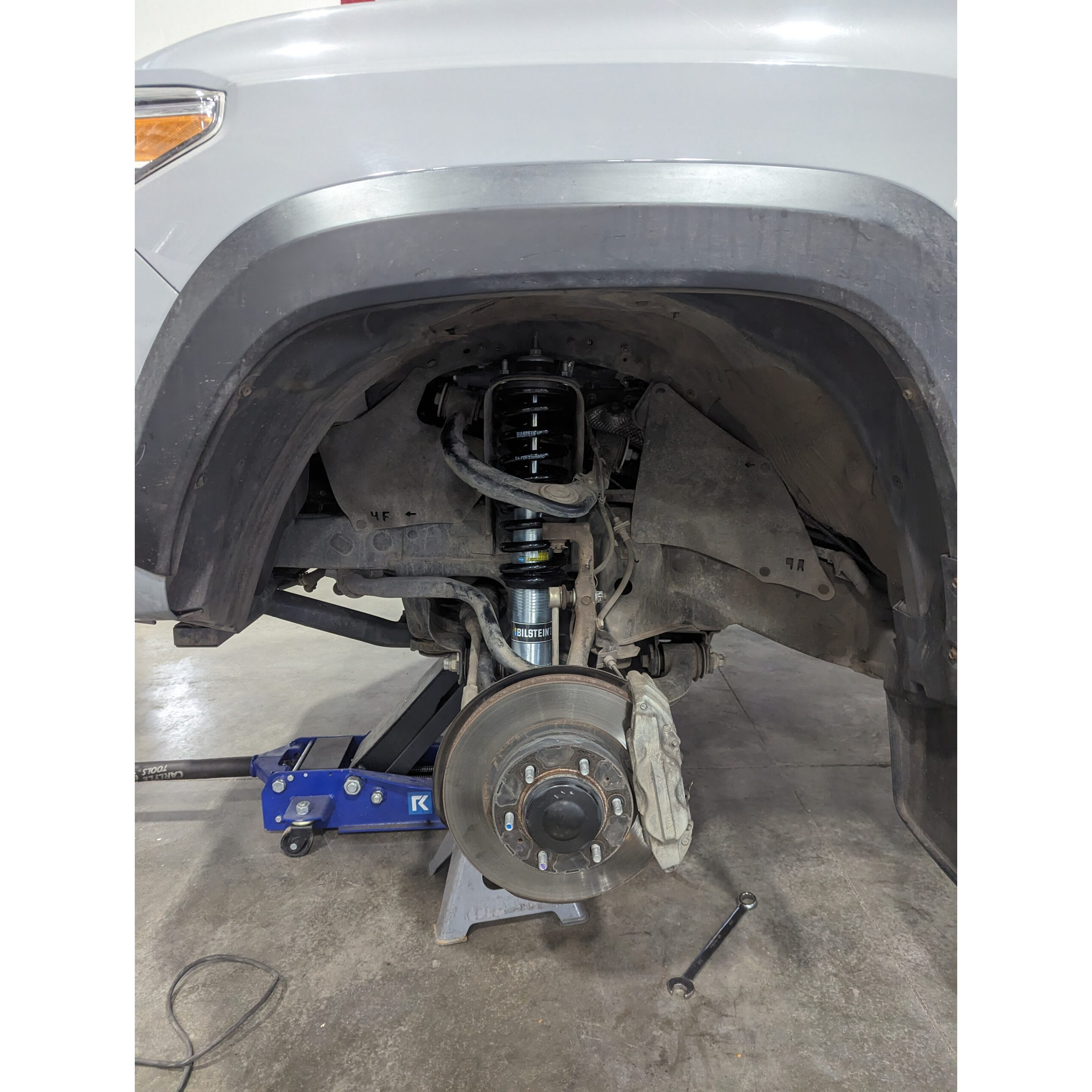

• Front (assembled): Bilstein B8 6112 kit 47-309975 (replaces 47-234413) – two 60 mm monotube struts, matched cold-wound springs, billet spring seats, new top mounts/hardware

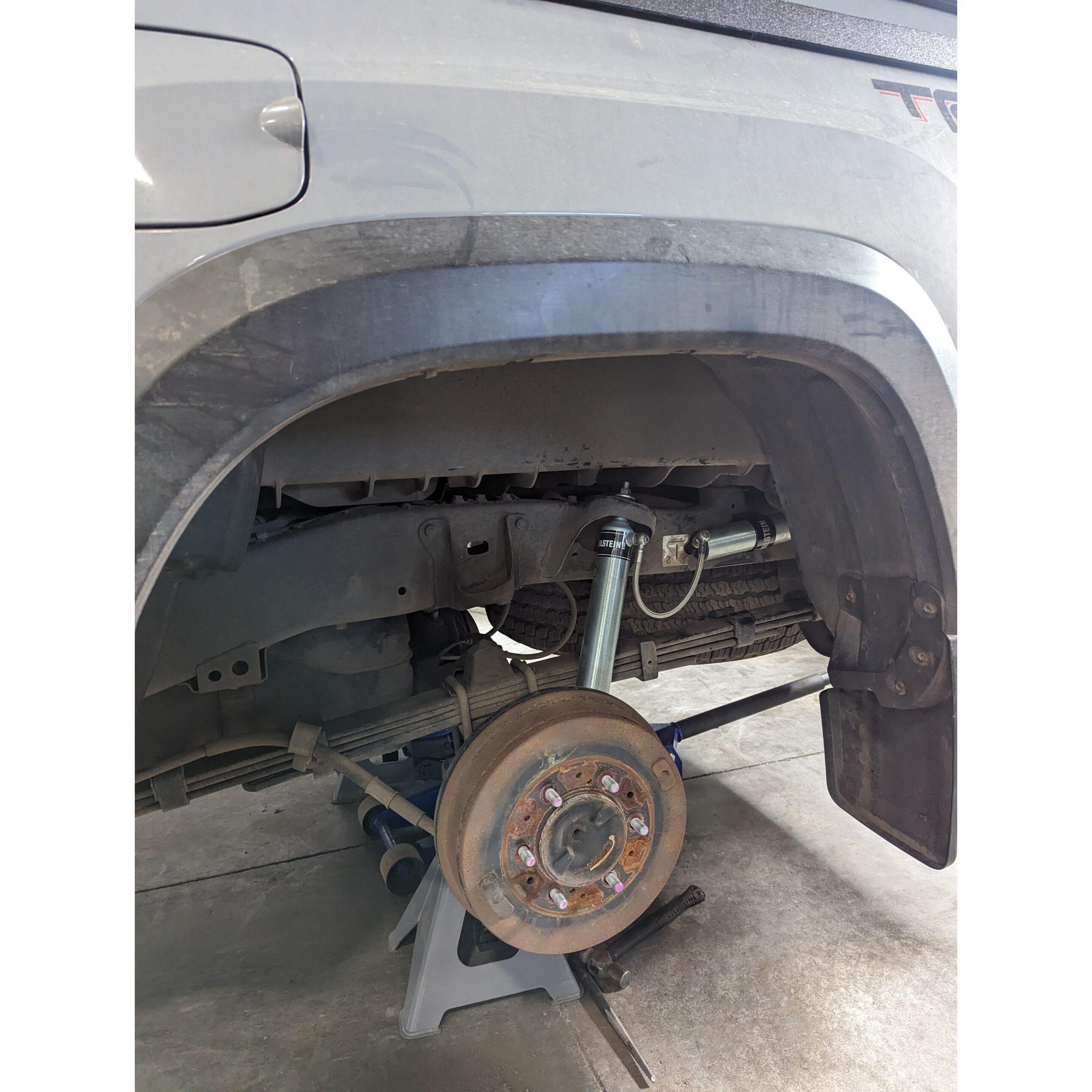

• Rear: Bilstein B8 5160 remote-reservoir shocks 25-311259 – sized for 0–1.5″ rear lift

Why You’ll Like It

• Pre-assembled fronts – faster, safer install; no spring compressor
• Real damping control – 60 mm pistons and digressive valving calm chop and keep steering precise
• Fade resistance – 5160 reservoirs increase oil volume/cooling for long, rough sections

Front 6112 details

• Adjustable lift: target up to ~2.0″ for this kit (6112 hardware allows as much as ~2.75″ depending on trim/weight)
• Construction: 60 mm monotube body & piston, vehicle-specific valving, linear springs

Rear 5160 specs

• Remote reservoir with 360° swivel banjo fitting
• Monotube, digressive valving; direct bolt-on
• Works with 0–1.5″ rear lift (shocks don’t add lift by themselves)

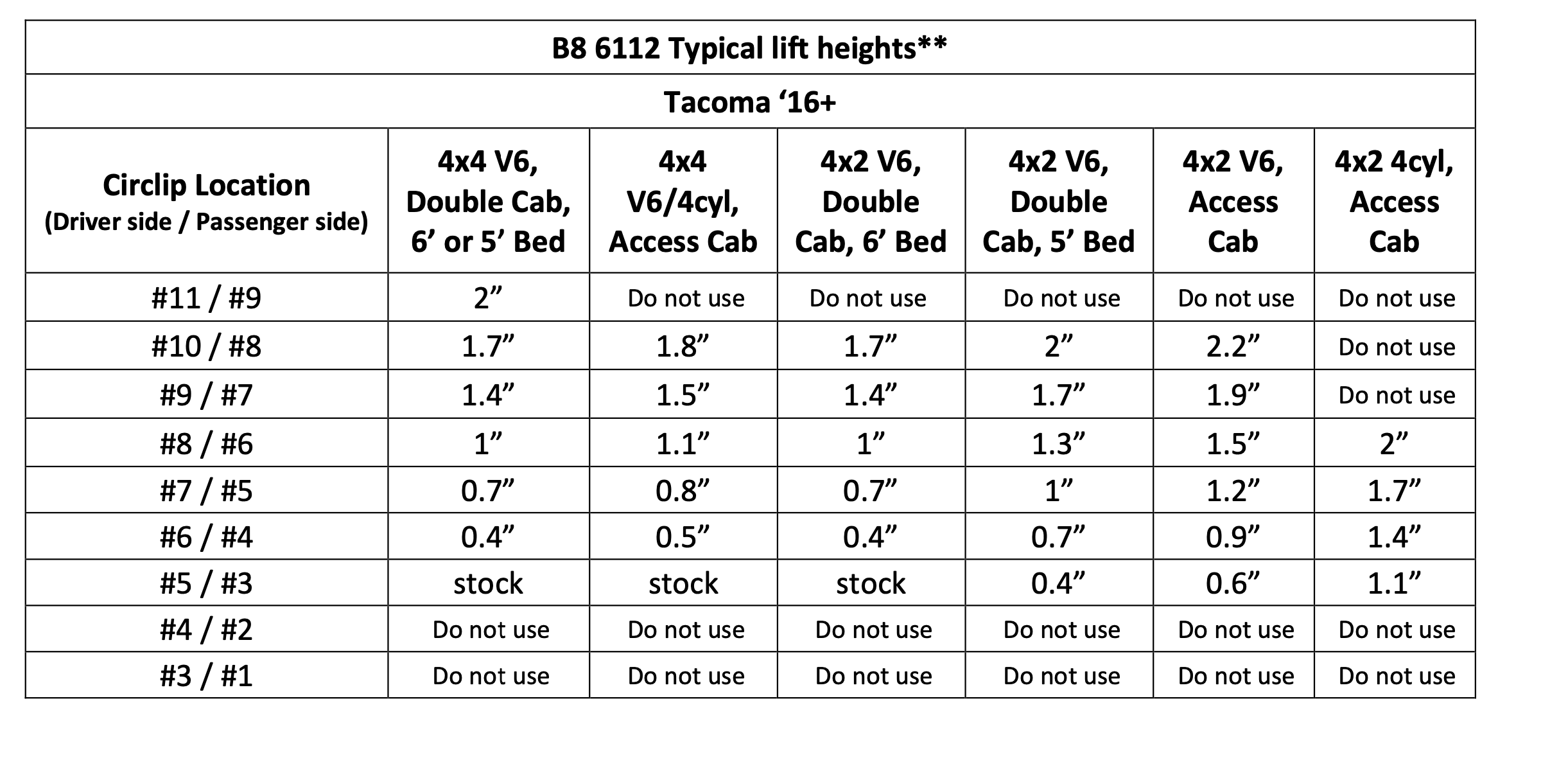

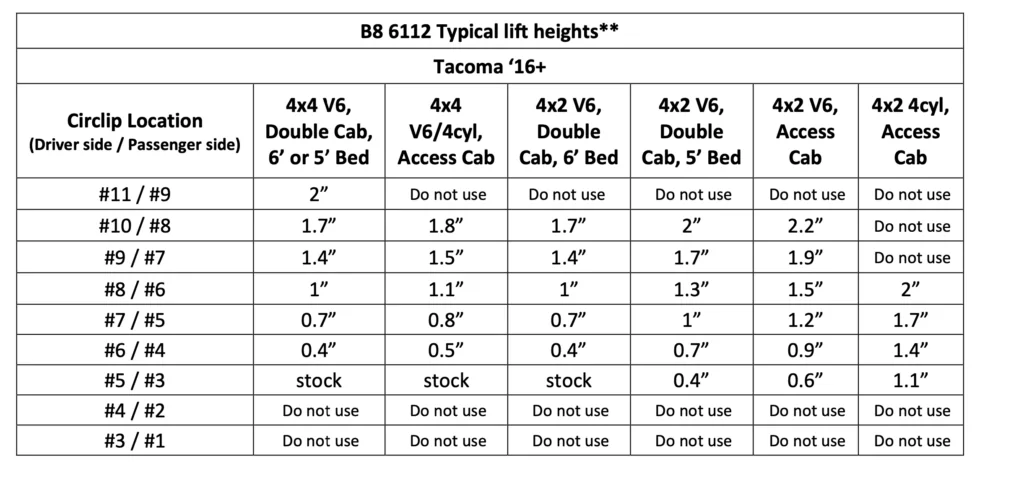

Clip (circlip) guide – typical front lift for Tacoma ’16+

Use the driver/passenger pair shown (e.g., #10/#8). Values are approximate and depend on cab/engine/weight:

• #10/#8: 4×4 V6 Double Cab ~1.7″ • 4×4 Access Cab ~1.8″ • 4×2 V6 DC 6′ ~1.7″ • 4×2 V6 DC 5′ ~2.0″ • 4×2 V6 AC ~2.2″
• #9/#7: 4×4 V6 DC ~1.4″ • 4×4 Access Cab ~1.5″ • 4×2 V6 DC 6′ ~1.4″ • 4×2 V6 DC 5′ ~1.7″ • 4×2 V6 AC ~1.9″
• #8/#6: 4×4 V6 DC ~1.0″ • 4×4 Access Cab ~1.1″ • 4×2 V6 DC 6′ ~1.0″ • 4×2 V6 DC 5′ ~1.3″ • 4×2 V6 AC ~1.5″ • 4×2 4-cyl AC ~2.0″
• #7/#5: 4×4 V6 DC ~0.7″ • 4×4 Access Cab ~0.8″ • 4×2 V6 DC 6′ ~0.7″ • 4×2 V6 DC 5′ ~1.0″ • 4×2 V6 AC ~1.2″ • 4×2 4-cyl AC ~1.7″
• #6/#4: 4×4 V6 DC ~0.4″ • 4×4 Access Cab ~0.5″ • 4×2 V6 DC 6′ ~0.4″ • 4×2 V6 DC 5′ ~0.7″ • 4×2 V6 AC ~0.9″ • 4×2 4-cyl AC ~1.4″
• #5/#3: stock (4×4 DC/AC/4×2 V6 DC 6′) • ~0.4″ (4×2 V6 DC 5′) • ~0.6″ (4×2 V6 AC) • ~1.1″ (4×2 4-cyl AC)
• #11/#9 and lower (#4/#2, #3/#1) are “do not use” for many trims; follow the chart and stay within geometry limits.

Fitment

• Vehicle: Toyota Tacoma 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
• Front lift range: set perch for ~0–2.0″ (hardware capable to ~2.75″ depending on configuration)
• Rear support: 0–1.5″ rear lift

Helpful add-ons

• Rear lift option (add-a-leafs):
  •

    •
    •
    •

    SKU: 51100

    ICON 1.5″ Lift Rear Expansion Pack Add a Leaf 1995-2023 Toyota Tacoma

    4 out of 5

    (16 reviews)

    $270.55

    Add to cart
• Coilovers only:
  •

    •
    •

    SKU: 6112Tac16

    Bilstein B8 Assembled 6112 Front Coilovers 0-2″ Kit for 2016-2023 Toyota Tacoma

    5 out of 5

    (1 review)

    $1,049.39

    Select options

Notes

• Higher front settings may benefit from aftermarket UCAs to recover caster
• Alignment required after installation; verify tire clearance based on wheel width/offset
